When first entering the world of upper limb prostheses, either because you have a congenital amputation and you’re considering a device, or because you’ve recently had an amputation and you’d like to learn more about your options, the language can be overwhelming. It’s something like buying a house or having a wedding: there’s all new vocabulary to learn. We have an article that goes over common terms, but here we’ll focus on what makes up the components of a prosthesis.

Most people who experience an upper limb amputation have never met someone else with an upper limb amputation. Same for parents of a child with a congenital limb difference. There’s no reason for them to know what parts are necessary to create an upper limb prosthesis. While the below may be helpful to get yourself familiar with what is available, what you will really benefit from is an upper limb prosthetic specialist. Each of our prosthetists and occupational therapists are upper limb prosthetic specialists. They know what parts will not only work best with each other, but what would work best for YOU based on your lifestyle, job and goals.

Let’s start with the smallest upper limb prostheses available: PIPDrivers or custom silicone restorations for a fingertip. The PIPDriver is a body-powered product made by Naked Prosthetics and can be used side by side with other prosthetic finger devices.

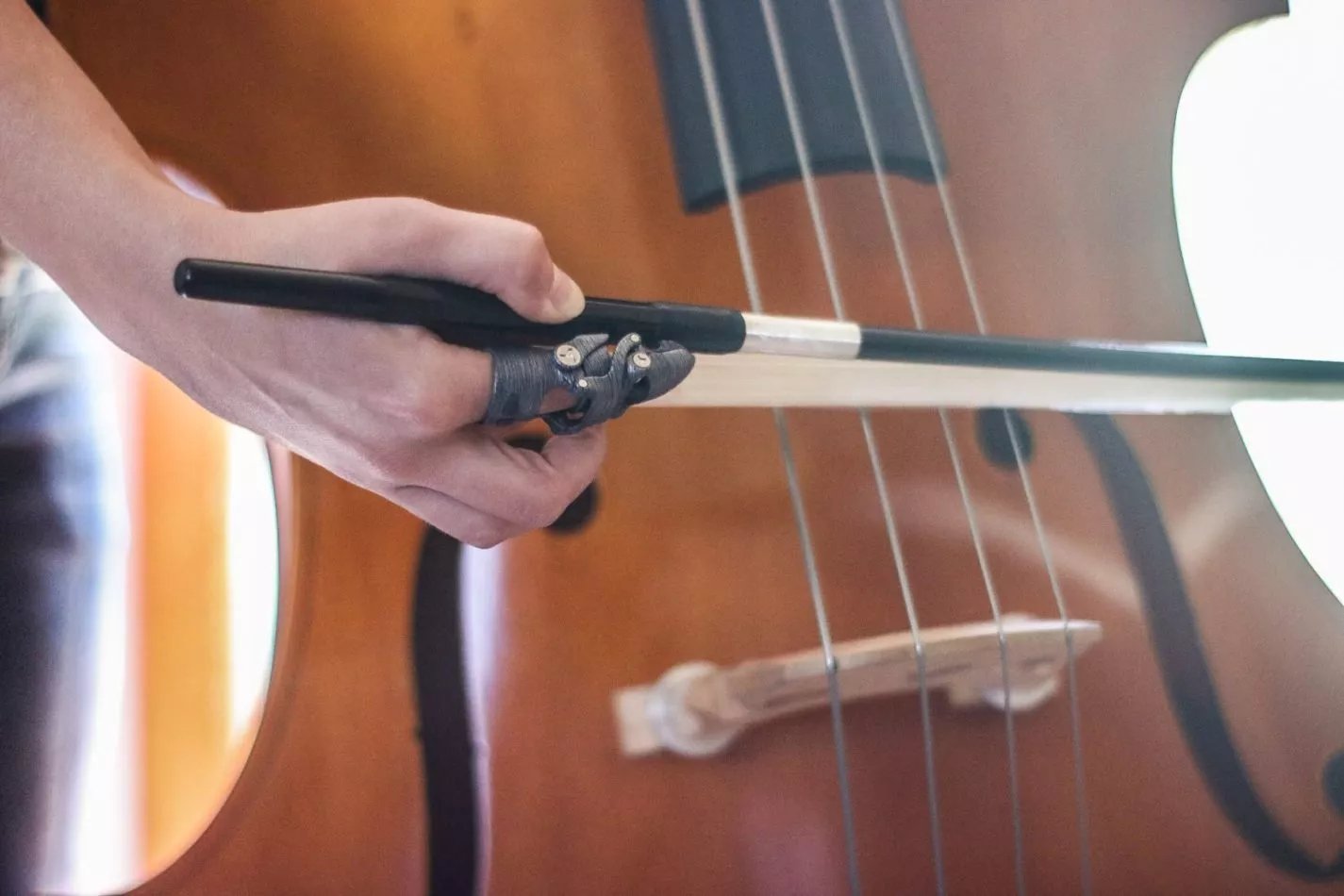

A person using their Naked Prosthetics body-powered PIP Driver prosthesis to hold the bow of a cello.

Additionally, they can feature artwork, as seen below:

Artwork on Naked Prosthetics PIP Driver

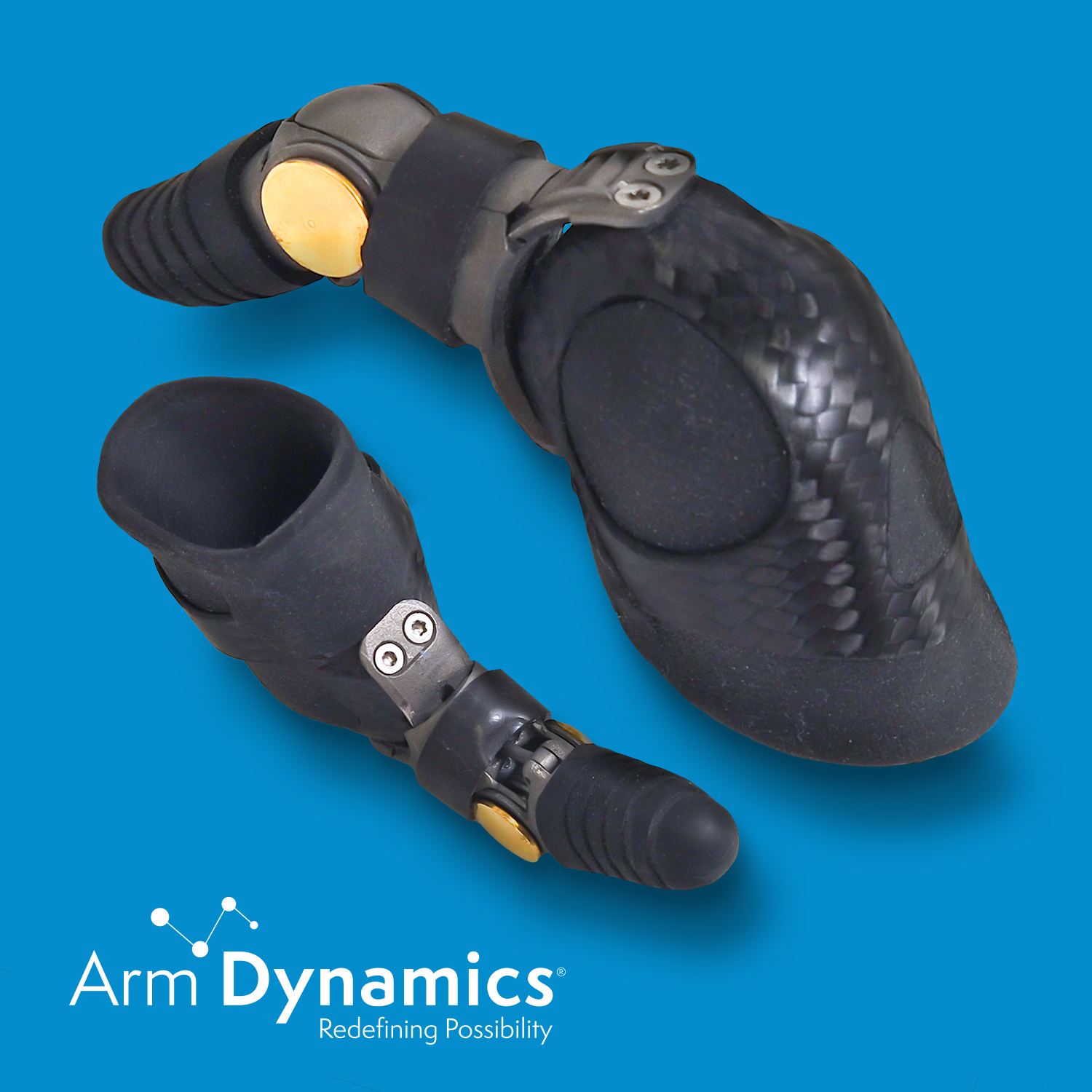

A company called Point Designs also makes a passive device for this level. A passive upper limb prosthesis is a device that is positioned by a person’s sound hand or by pushing it against a tabletop or other surface. This is the Point Partial:

A Point Partial Digit socket created by Arm Dynamics prosthetists and their technicians.

Custom silicone restorations can be made for any upper limb difference, including fingertips:

An Arm Dynamics patient displaying their Custom Silicone Restoration on their residual finger.

The next highest partial finger prostheses are MCPDrivers and ThumbDrivers for people with shorter residual fingers, but still enough finger for the band to hold onto. These devices need to be placed on a frame — most upper limb prostheses include a frame or silicone socket to hold the device in place.

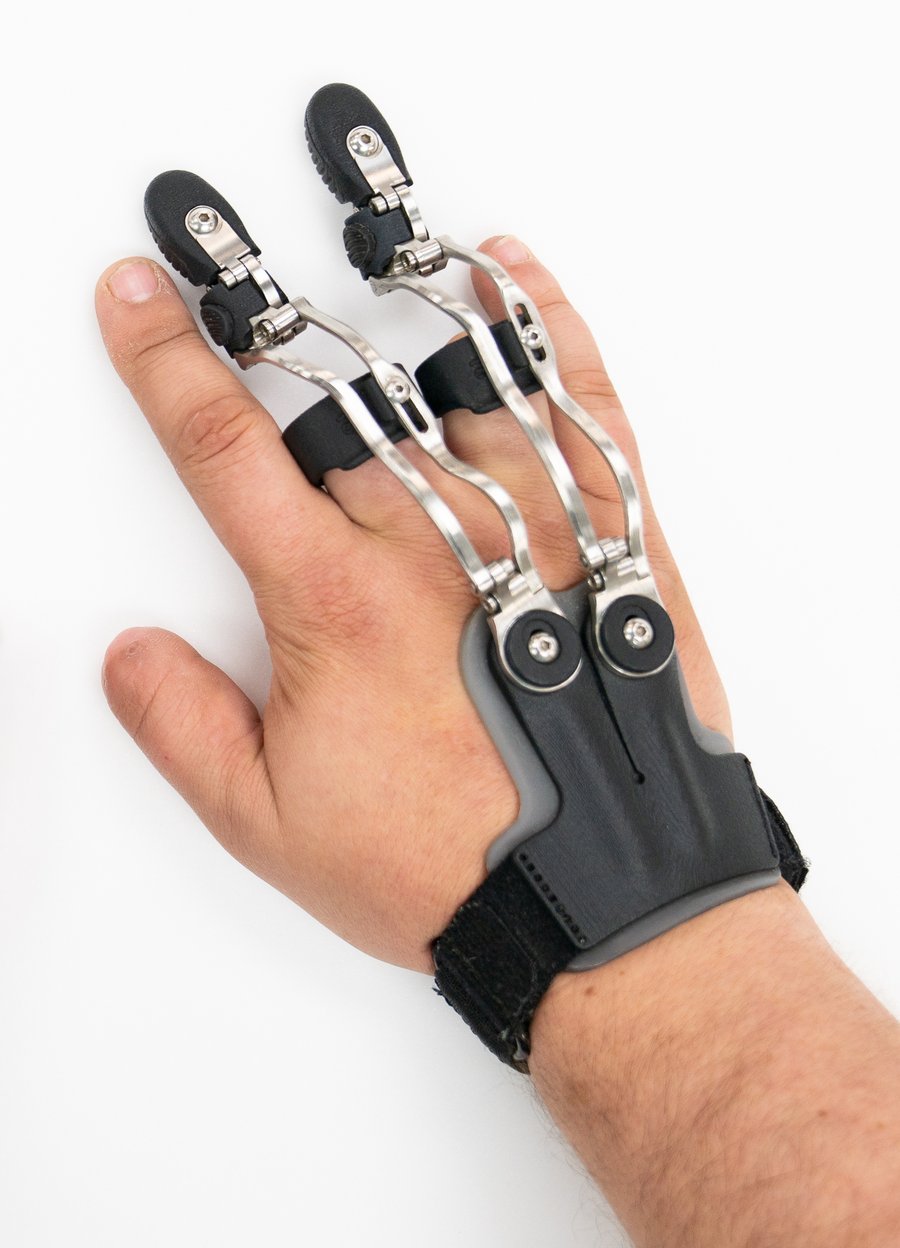

An Arm Dynamics patient wearing their Naked Prosthetics MCP Driver prosthesis on their residual hand.

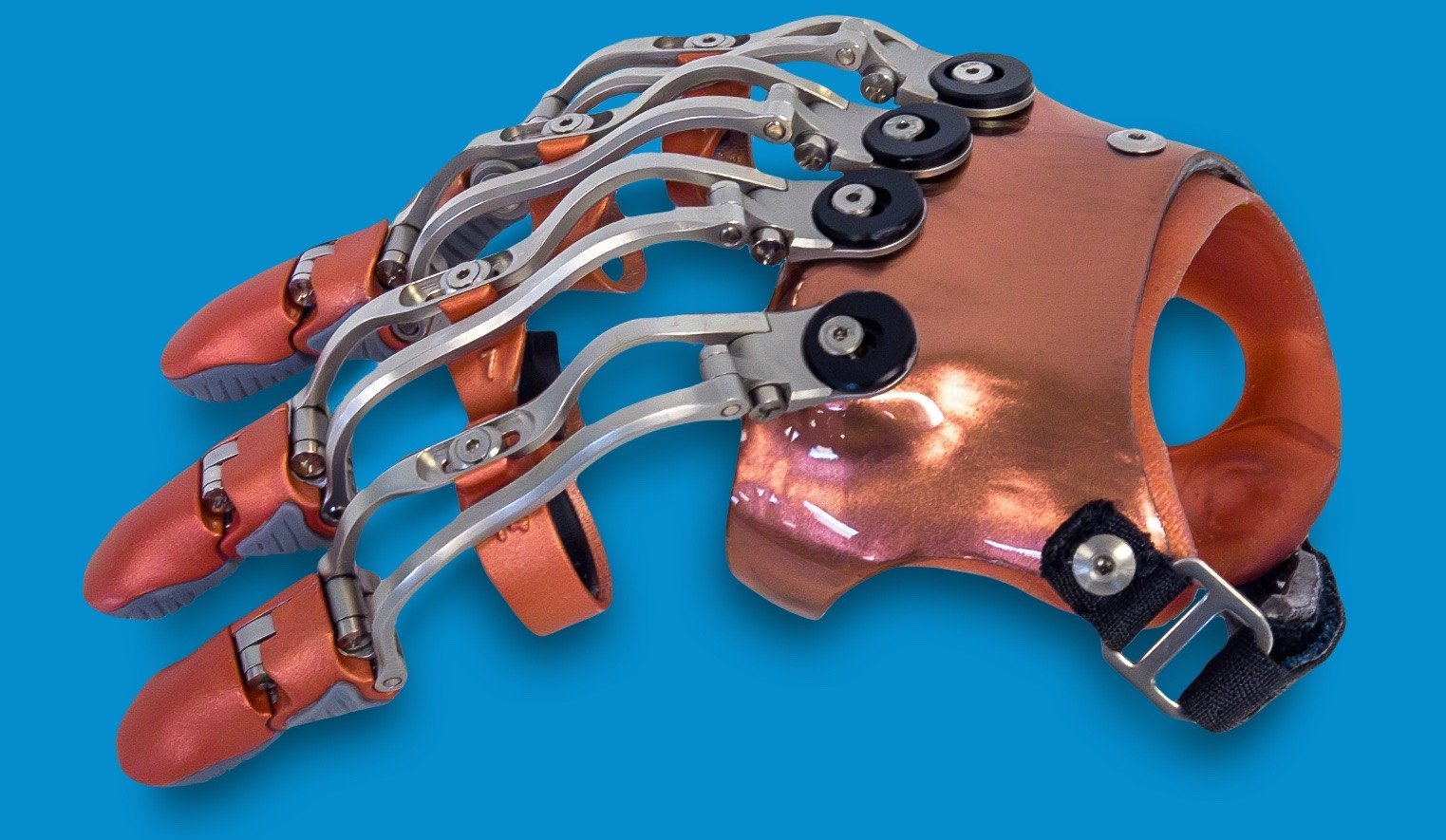

These devices and frames can also be customized to the wearers liking. On this prosthesis, you can see the frame, the hard cover on the top of the hand, and the socket, which is the silicone inside that allows for a comfortable fit against the residual limb:

A Partial Hand NP MCP Drivers - Rose Gold

Custom silicone restorations are also available for this level:

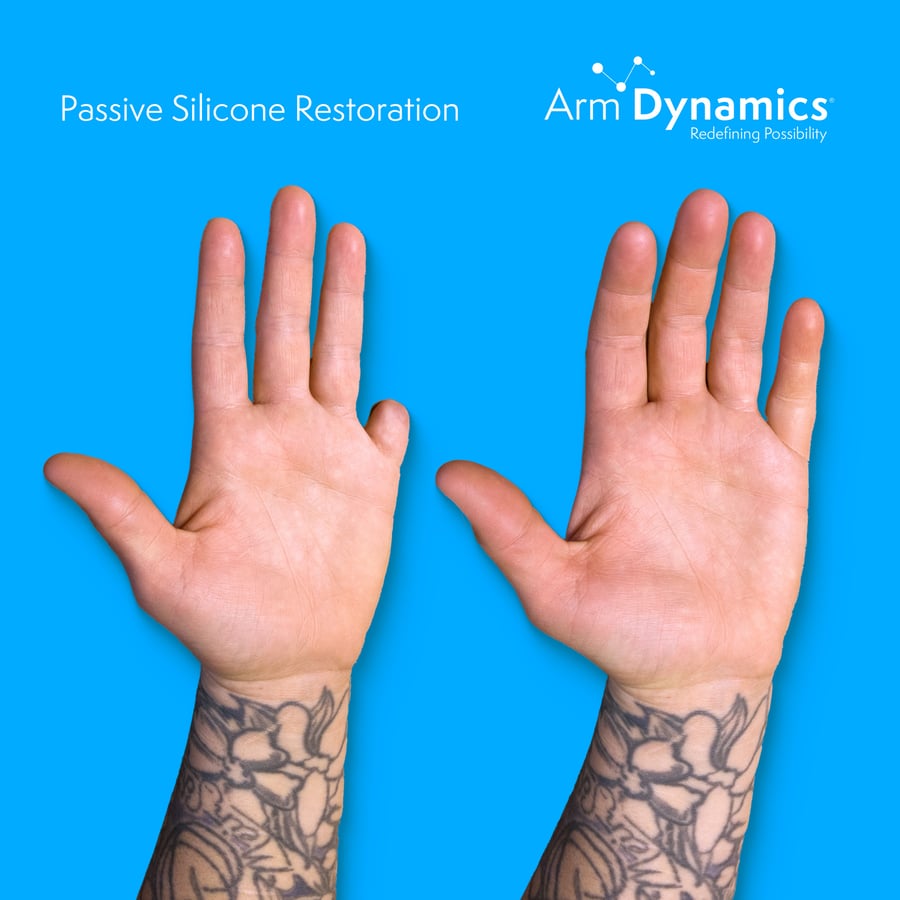

An Arm Dynamics passive silicone restoration digit.

For people missing one or more fingers and/or thumbs, there are two passive options, custom silicone restorations and myoelectric devices. PointDesigns offers Point Digits and Point Thumb. Below you can see our patient Rachel wearing to Point Digits.

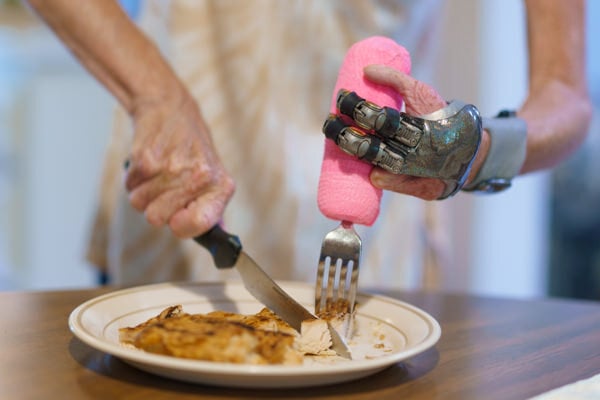

Arm Dynamics patient Rachel uses her prosthesis to hold her fork while her sound hand uses a knife to cut chicken.

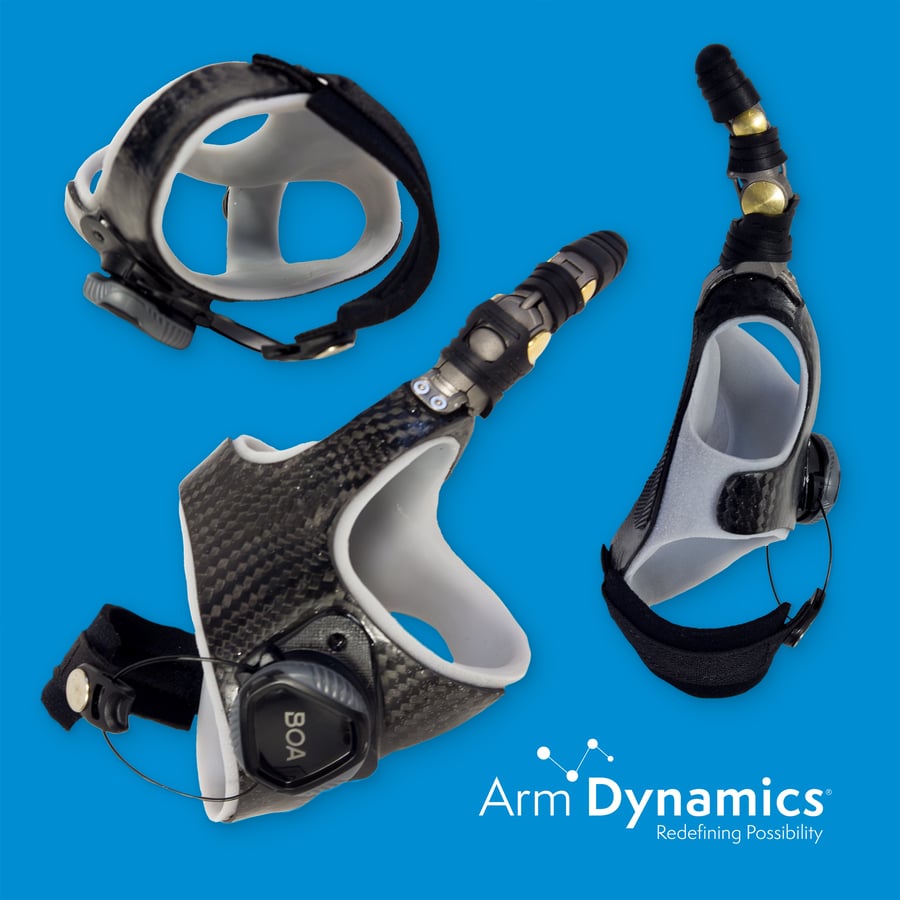

In the photo below, you can see a Point Digit, along with a frame featuring a BOA system. This device allows for a prosthesis to be put on, then tightened. Our prosthetists and technicians use the BOA system on many levels of upper limb loss, from partial finger to shoulder level.

Arm Dynamics created Point Digit with Silicone and BOA

Custom silicone restorations are also available at this level, and people often add accessories like rings and bracelets to enhance the realistic look of the prosthesis.

Cosmetic Partial Hand Restoration

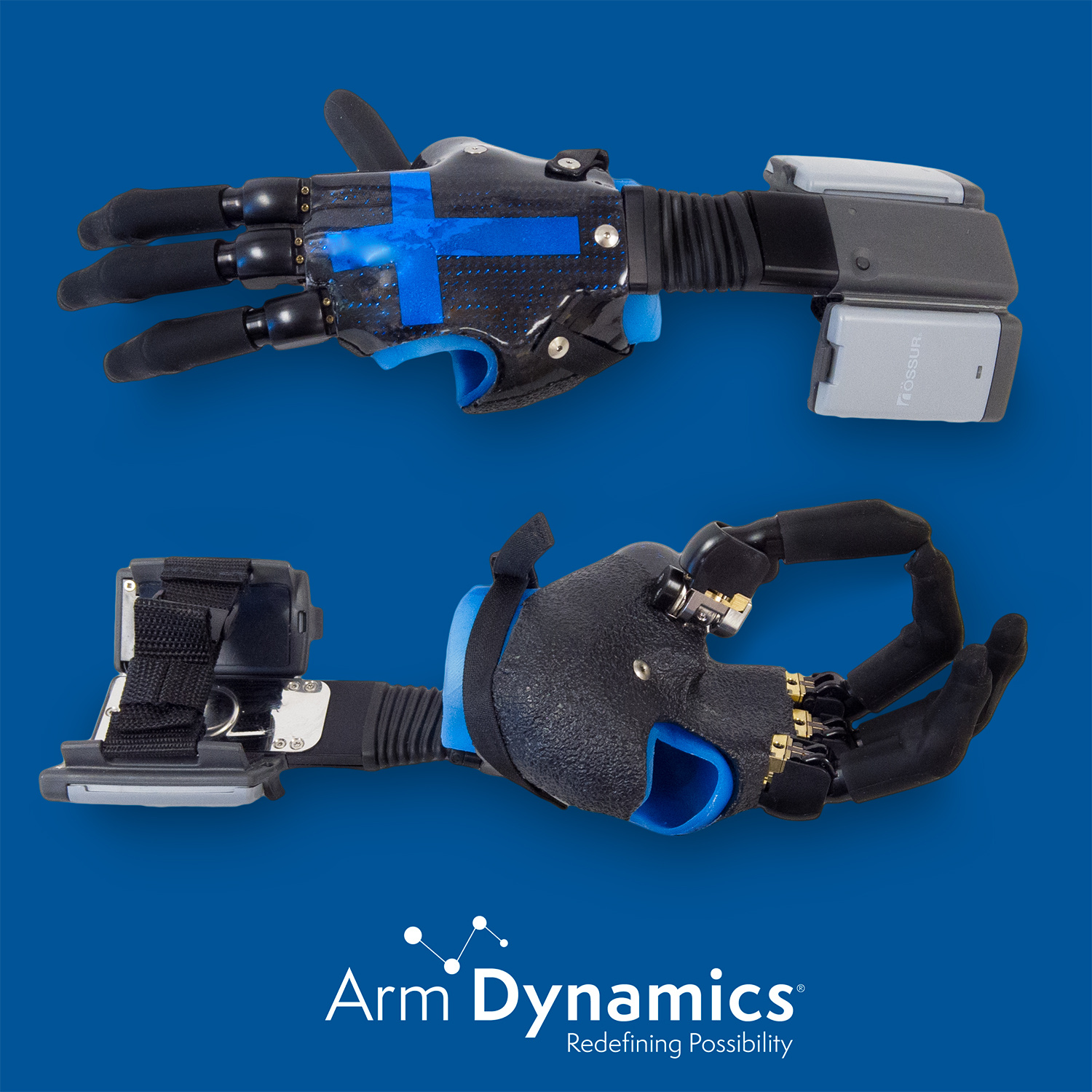

Some people with missing fingers and/or a thumb opt for a myoelectric device. Below you can see iLimb Digits connect to a frame that covers the residual palm. Inside the frame is the silicone socket. The fingers are powered by the battery pack that is part of the wrist strap. Most myoelectric fingers can only open and close — they cannot change grip patterns the way a myoelectric hand can, which we feature below.

iDigits PX with Blue Silicone Socket

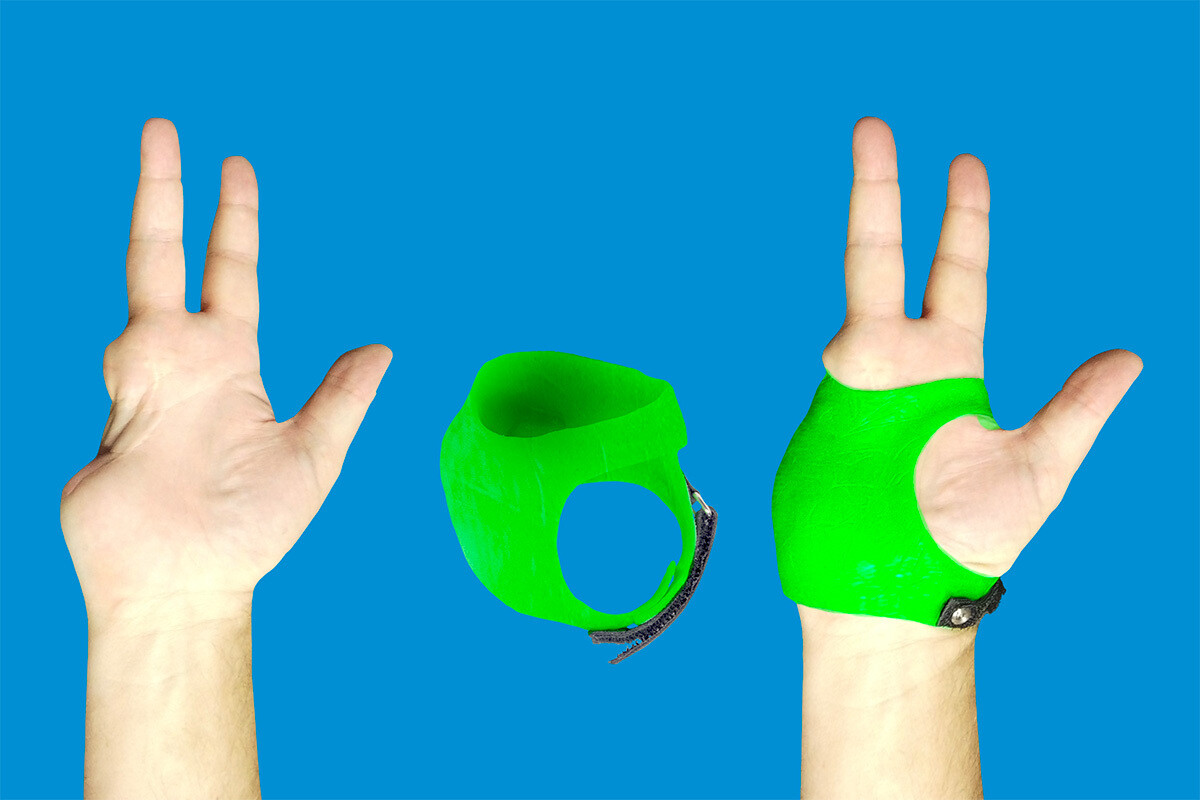

You also may hear of a hand protector. These can be crucial for anyone who has a sensitive residual palm:

An Arm Dynamics patient showing their hand protector to help protect the sensitive part of their residual hand.

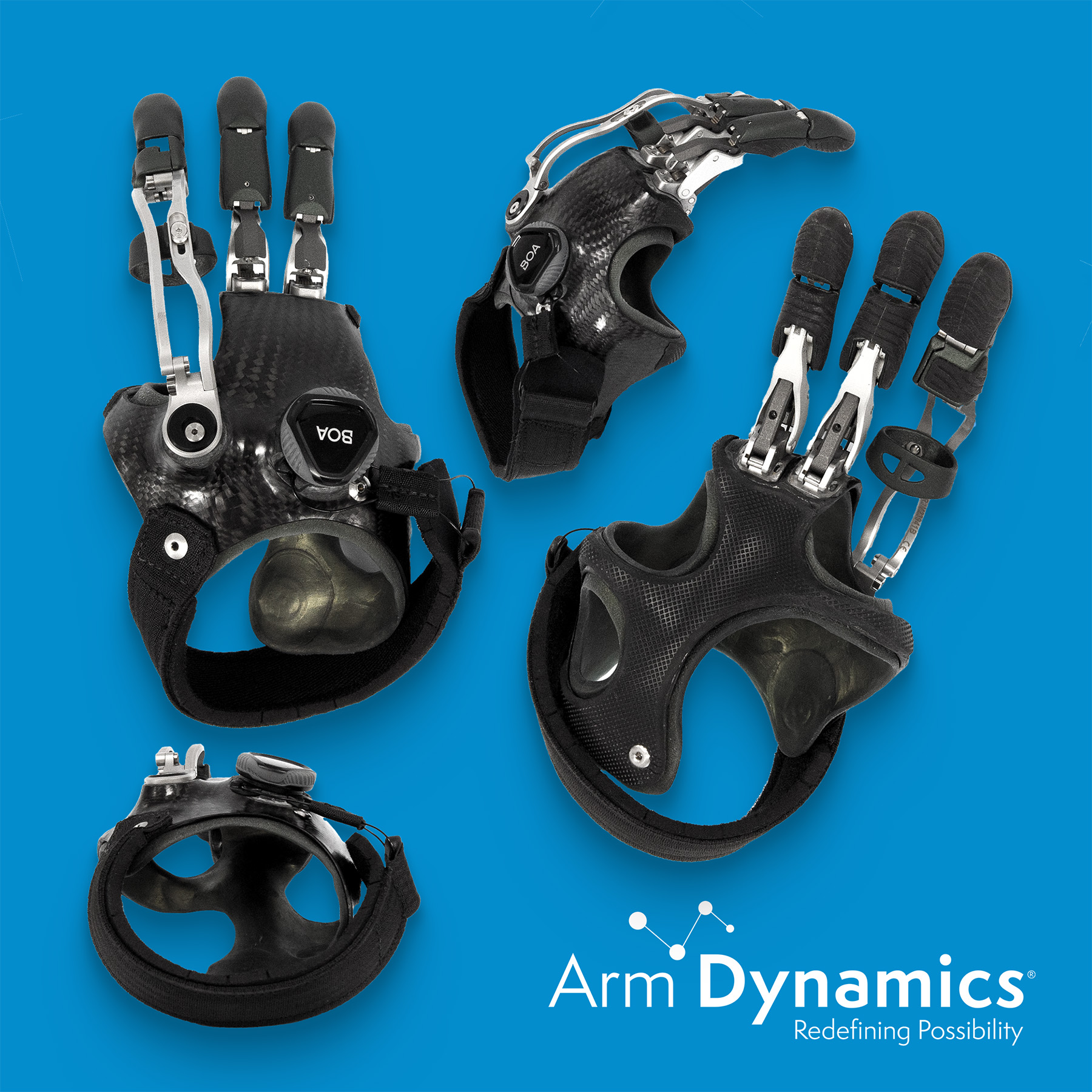

Let’s not forget hybrid devices. A hybrid device can describe any prosthesis that uses two different types of devices. In the image below, you can see a prosthesis that includes both passive and body-powered fingers:

A hybrid prosthesis made up of Point Designs Digits and Naked Prosthetics MCP Drivers.

Moving up to below elbow limb differences, the options include custom silicone restorations, body-powered, and myoelectric.

The myoelectric prosthesis below features a TASKA myoelectric multi-articulating hand, a (Bengals-themed) frame and a silicone socket.

Cincinnati Bengals Transradial prosthetic arm.

Body-powered terminal devices can be body-powered hooks, such as the one below:

Custom Carbon Fiber Socket with body-powered hook to use while fishing.

There are custom silicone restorations at this level, as well:

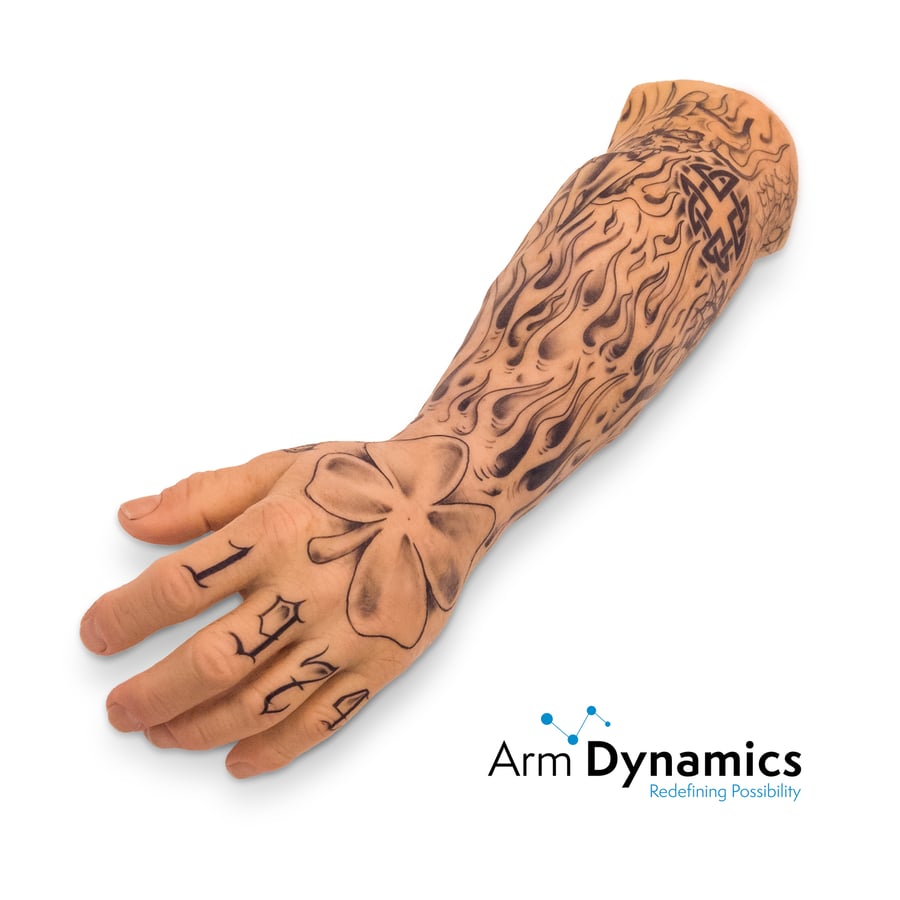

Arm Dynamics patient Abram's custom silicone restoration prosthesis, which has been tattooed.

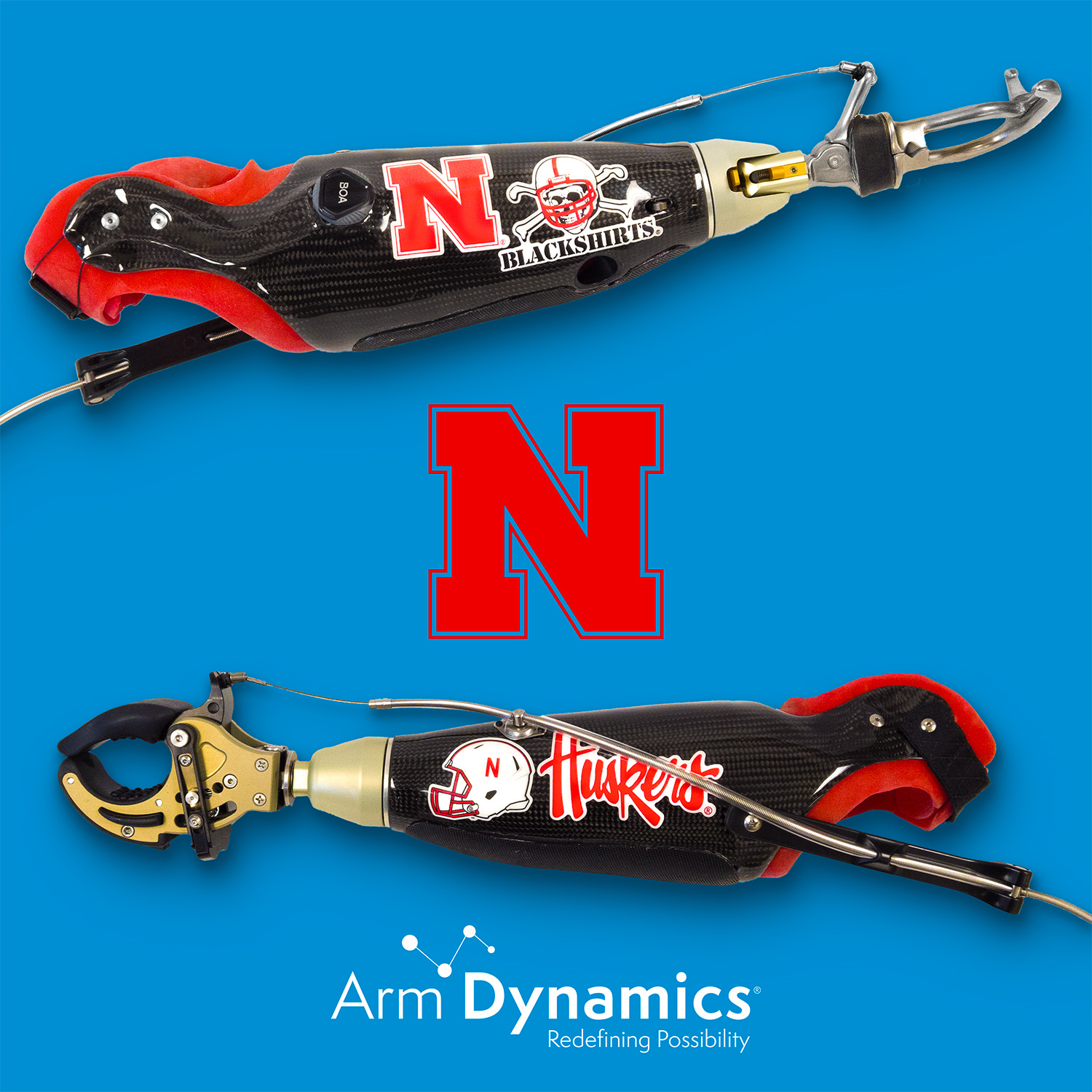

None of the above prostheses include a wrist unit, but those can be crucial for prepositioning the prosthesis and preventing overuse injuries for both the sound side and the affected side of the body. You can see a wrist unit in the image below. There are also myoelectric wrist options.

Nebraska Cornhuskers Transradial body-powered prosthesis.

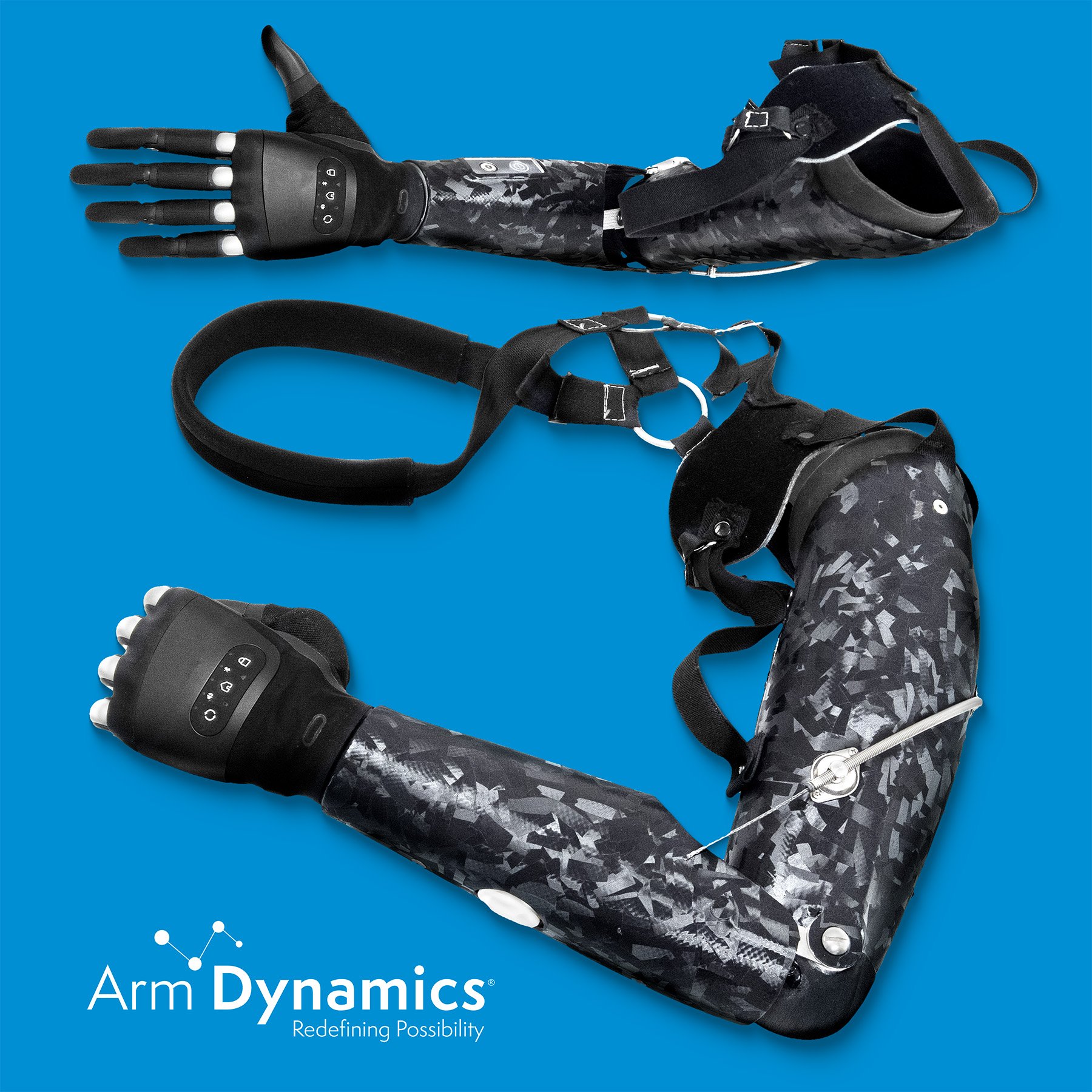

For people with a limb difference above the elbow, the prosthesis will need to include an elbow. The below prosthesis features a TASKA CX hand and a body-powered elbow.

Arm Dynamics patient Jameson's Transhumeral prosthesis featuring a TASKA hand.

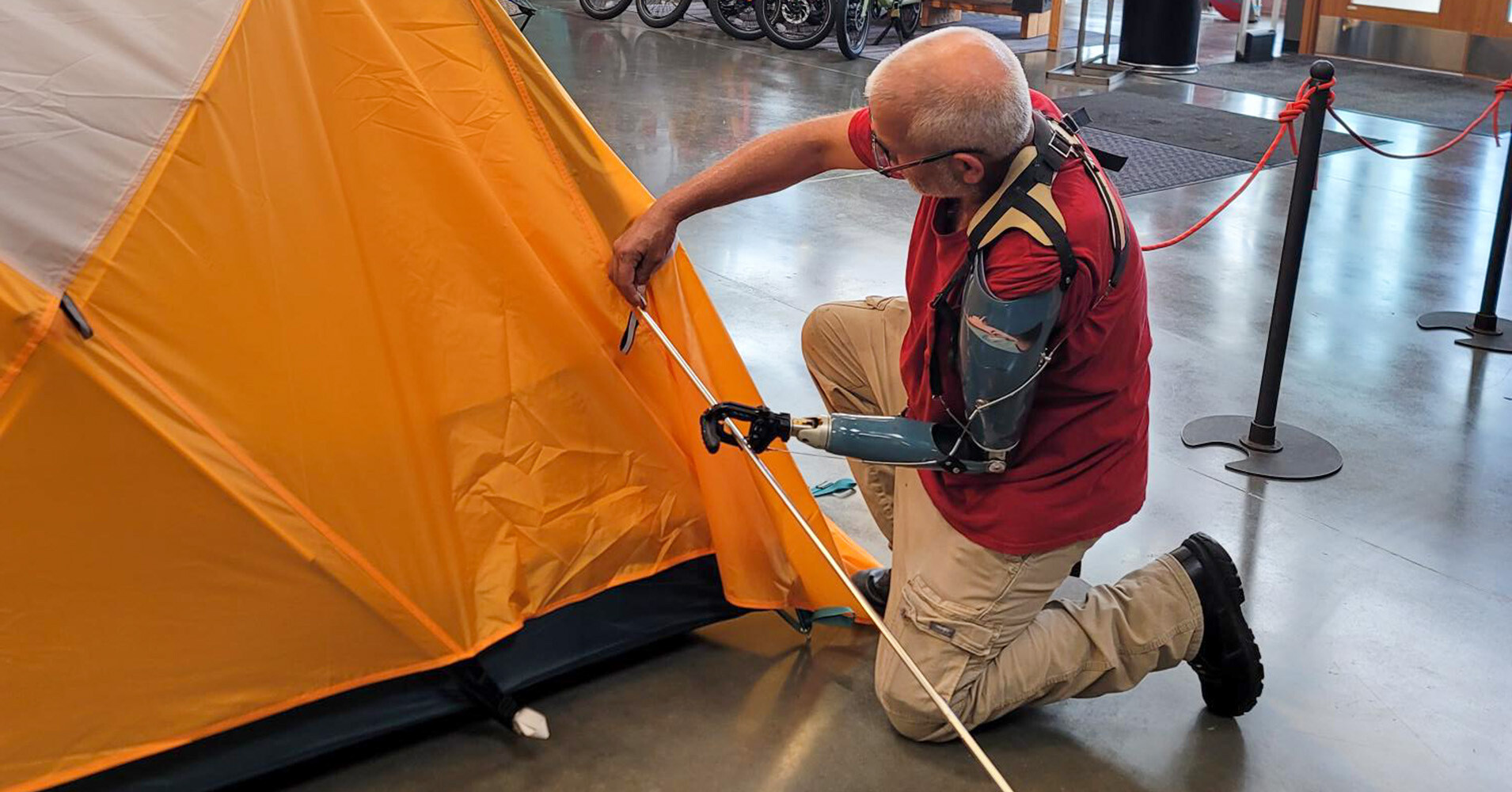

Here is our patient Doug wearing a body-powered V2P with a wrist unit and a body-powered elbow:

Arm Dynamics patient Doug using his upper limb prosthesis which features a V2P terminal device to set up a tent.

Additionally, custom silicone restorations are available for above the elbow:

Diana and ARTech Restoration mid-process for her custom silicone restoration prosthetic arm.

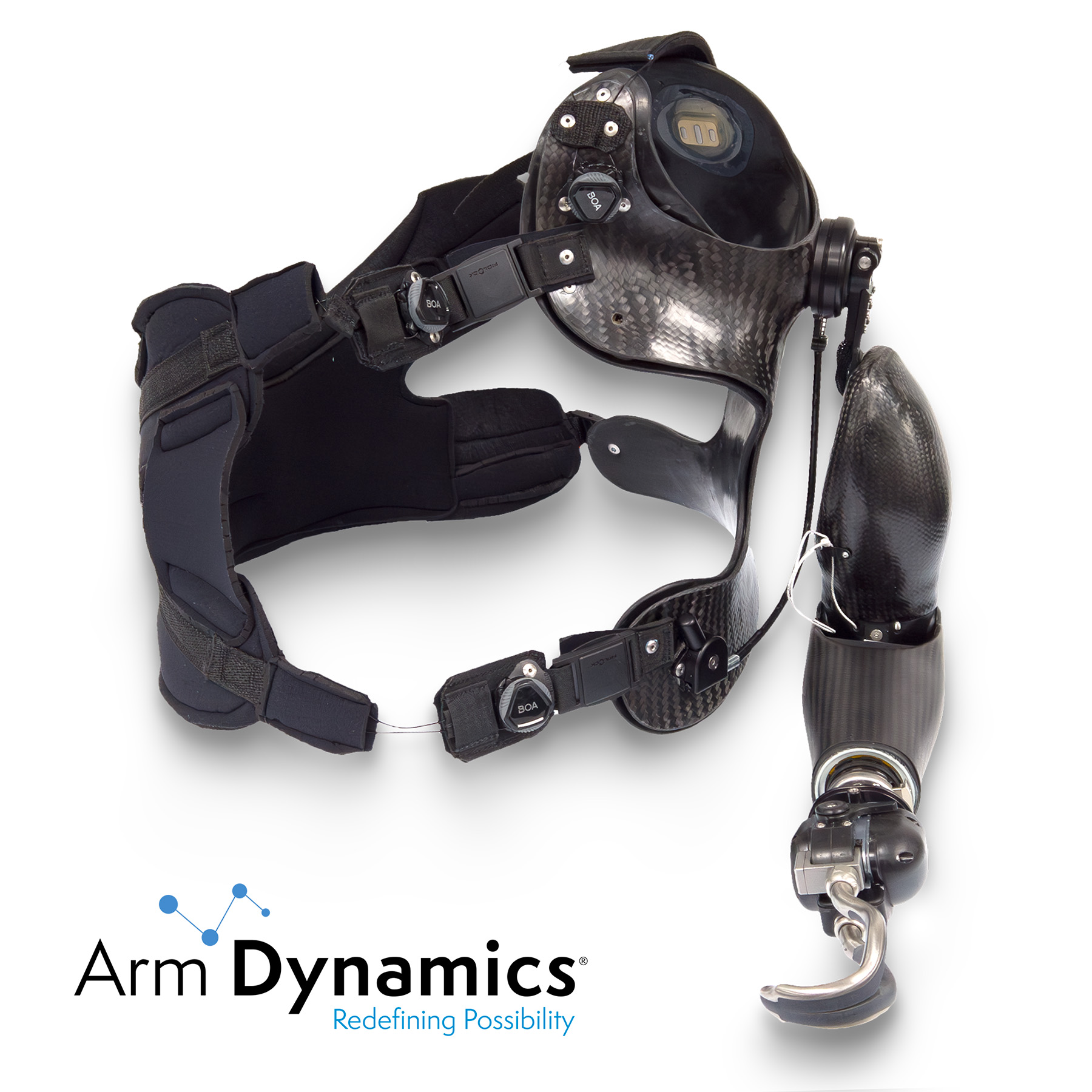

For limb differences above the shoulder, there are shoulder prostheses available. The one featured below is a myoelectric unit. Depending on the type of terminal device used and the limb difference level, a harness, which you can also see below, may be utilized.

Arm Dynamics patient Dakota's myoelectric prosthesis for his shoulder level amputation.

Last but not least, we'd be remiss not to mention activity-specific devices. These can vary from devices that can help with swimming, playing pool, bowling, bicycle riding, hunting and other hobbies but some of the most popular activity-specific devices are built to help people weightlift and exercise:

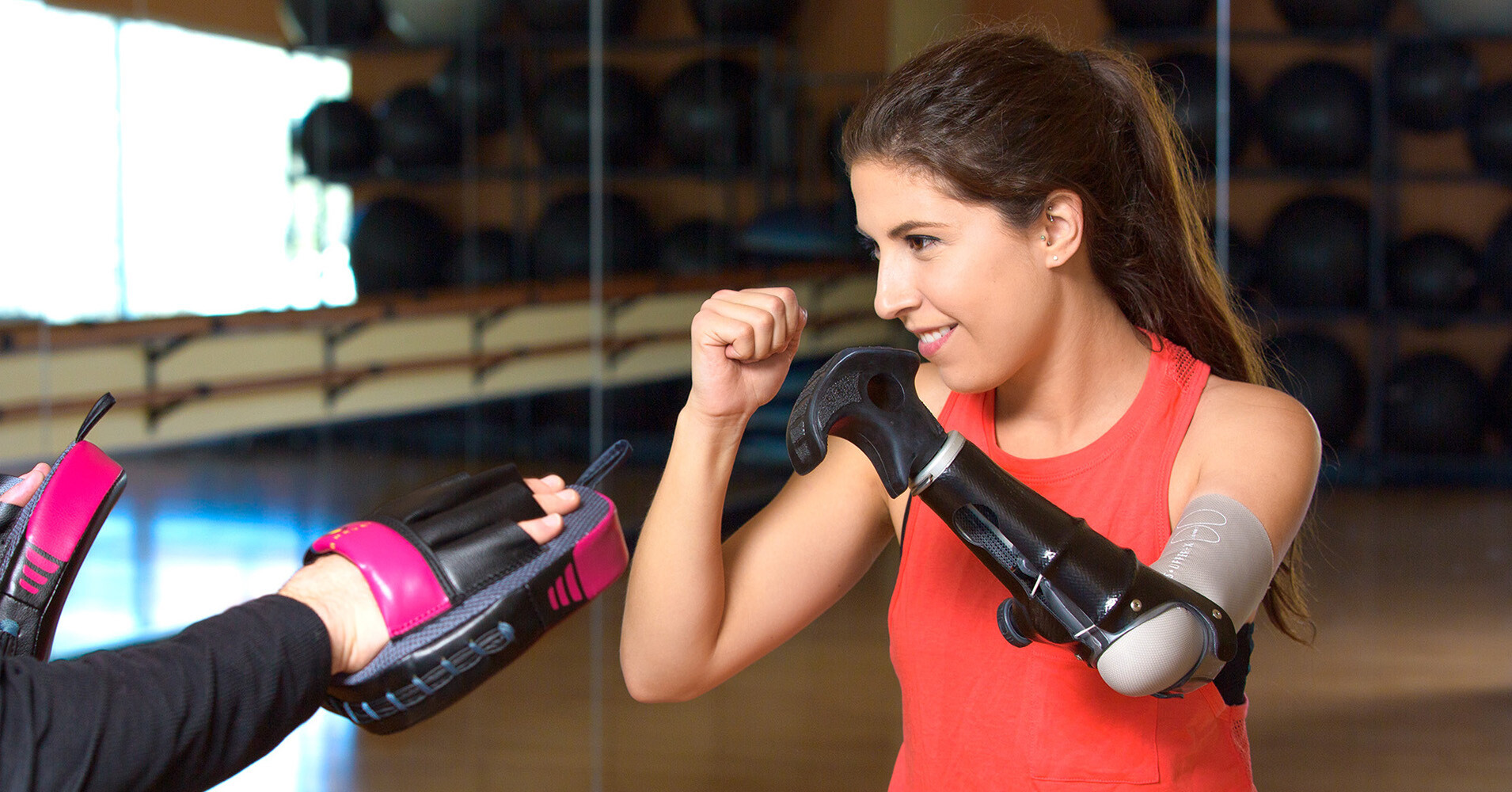

Arm Dynamics patient Angel using her activity-specific device at the gym.

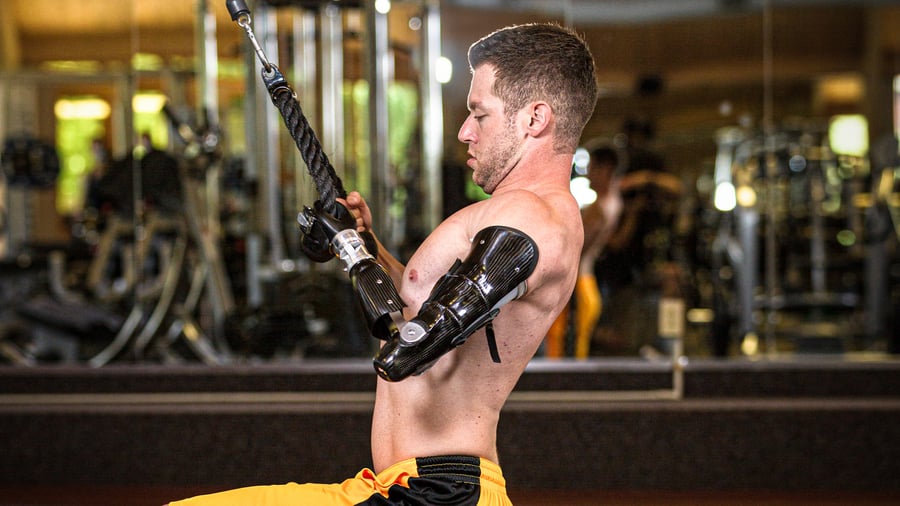

Arm Dynamics patient Max using his above elbow activity-specific device at the gym.
Arm Dynamics patient Shaholly using her activity-specific device while doing yoga at home.

The larger the prosthesis, of course, the more parts there are. When you have the Arm Dynamics clinical team on your side, you don’t need to worry about which parts will work best for you because we have years of experience and can walk you through the process, matching devices and parts to your goals. It’s important to be flexible: we’ve had patients come in who were certain they knew what they wanted, only to learn that a different type of device would work better for them.

If you would like to learn more about what would work best for your goals, please contact us. Once you and your prosthetist determine what would work best for you, our support doesn’t stop there — our occupational therapists teach our patients how use their devices in their daily lives at home, at work and more.
